MODULE 2410 - SAMPLE & HOLD

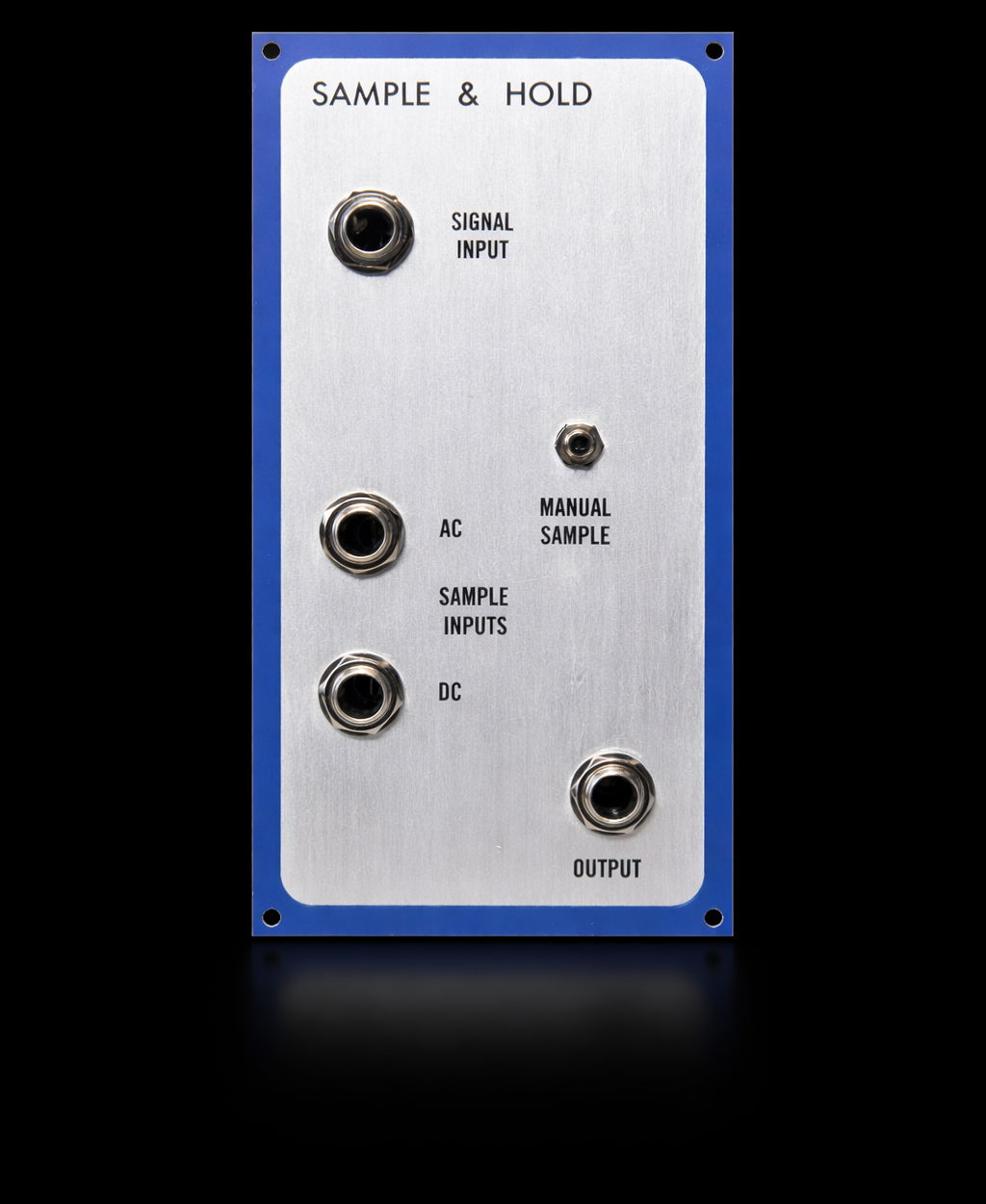

The 2410 Sample & Hold module acts as an analog memory for synthesizer signals. On application of a fast rising edge (such as a pulse waveform) to the AC sample input, the output of the module will instantly slew to the voltage present at the signal input, and remain at that voltage until another sample command is applied. On application of a positive voltage (>2.5V) to the DC sample input, the output will assume the voltage at the signal input, and track that voltage while the DC sample input remains high. When the sample input goes low, the output will remain at the signal voltage present at that time. The sample pushbutton on the panel behaves as a DC sample input, causing the output to track the input when depressed, and hold when released.
